Post PR-AH type
|Fence Height, mm||Post Height, mm||Strip||Number of holes|
- Profile of the post: 60x40x2 mm
- Also available profiles: 80x40x2 mm, 100x40x2 mm

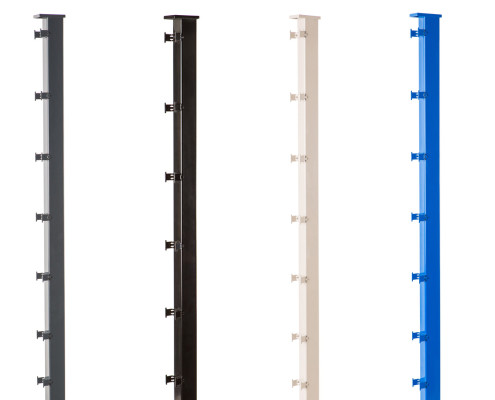

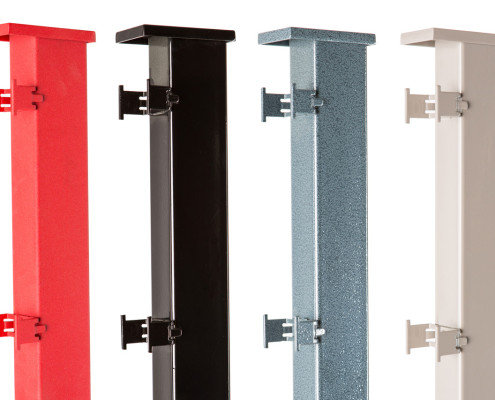

Posts can be hot dip galvanised or hot dip galvanised and powder coated in any RAL colour. We have standard colours: RAL 6005, RAL 9005, RAL 6009, RAL 8017 and RAL 7016 – which we always have on stock, but as mentioned above – any other colours are also available – just check with us.

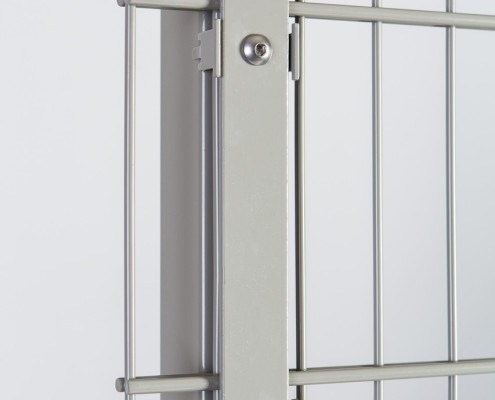

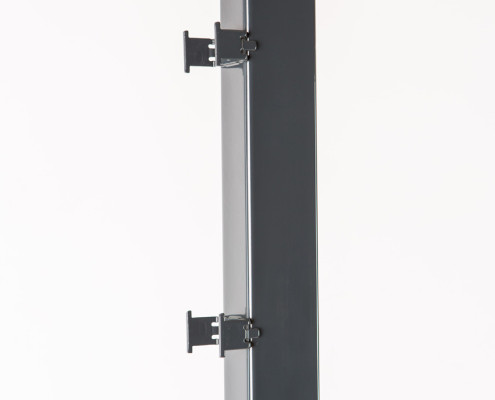

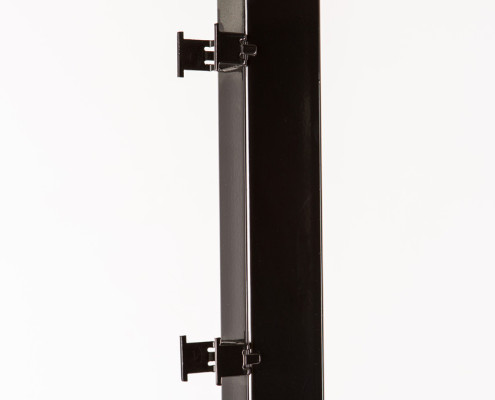

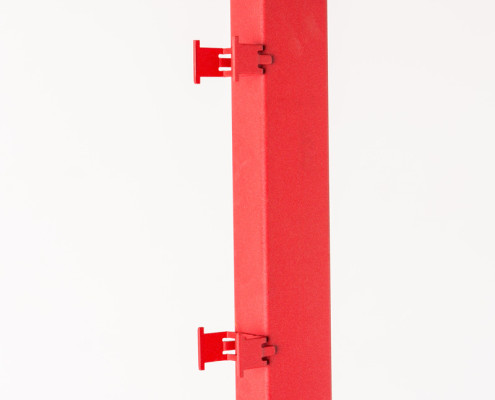

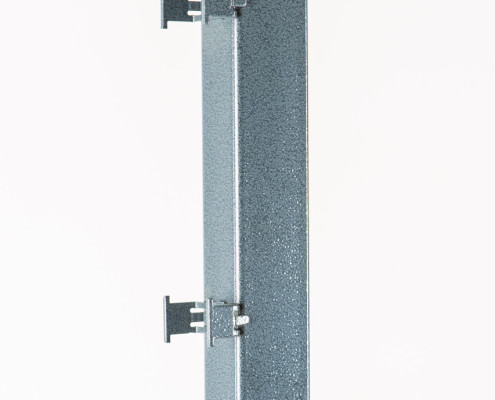

Panels are fixed to the post with a special extra safe system, which includes a 40×2 mm thickness plate. Special fixators are fixed to the posts every 200 mm (except the last one – 160 mm) – which naturally adds safety and good look to the whole system.
The fixators can be metal or plastic. Metal fixators are more firm and safe, while plastic fixators allow the metal not to touch (panel with post doesn’t have any touching points) and is extremely quiet and absorbing any vibration.

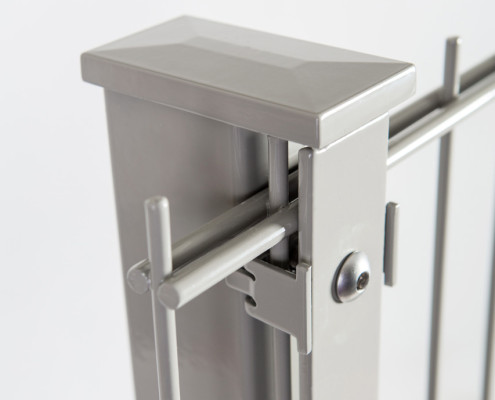

A special safety cap can also be included – it is specially designed in a way that without tools none could take it out.
- Screw: stainless steel
Special orders are always possible at any times!
Other available heights:
- Fence Height, mm
- Post Height, mm
Post PR-S Type
|Fence Height, mm||Post Height, mm||Weight kg/pcs||Number of fixings|
Profile of the post: 60x40x2 mm (also available profiles: 80x40x2 mm, 100x40x2 mm)
- Height: 1500, 1700, 2000, 2300, 2500, 3000 mm (special height available on request)
- Cap: plastic cap
Connection with the panel: stainless steel ring or a fastening set
- hot dip galvanised according to EN ISO 1461
- powder coated in any RAL colour using Qualicoat powder according to EN 13438
