8/6/8
| Height, mm | Weight (galvanised), kg | Weight (coated), kg |
| 630 | 14.3 | 14.7 |
| 830 | 18.3 | 18.8 |
| 1030 | 22.3 | 22.9 |
| 1230 | 26.3 | 27.1 |
| 1430 | 30.4 | 31.2 |
| 1630 | 34.4 | 35.3 |
| 1830 | 38.4 | 39.5 |
| 2030 | 42.4 | 43.6 |
| 2230 | 46.4 | 47.7 |
| 2430 | 50.5 | 51.9 |

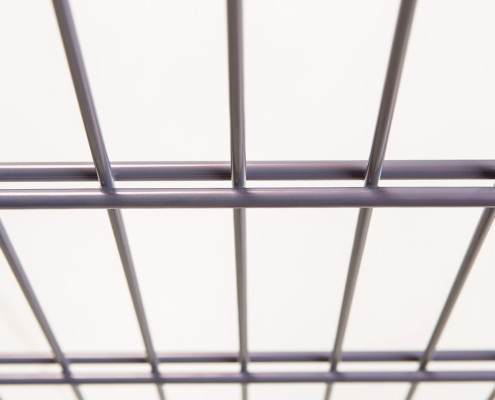

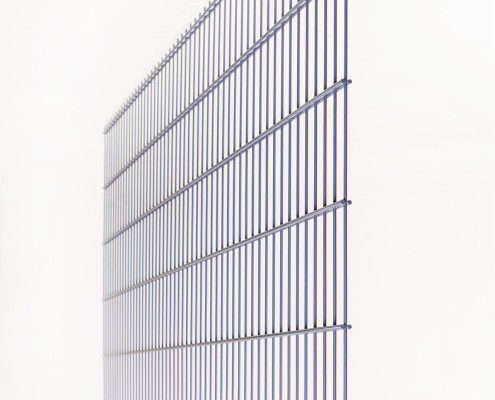

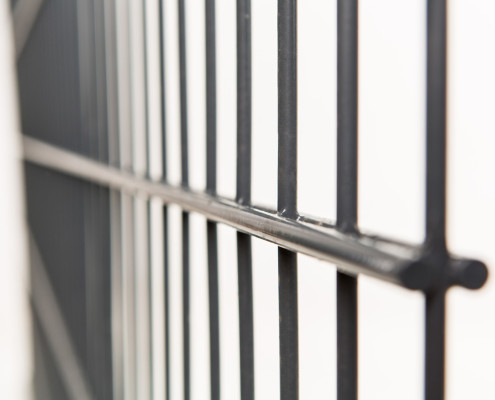

8/6/8 offers the best safety solution. The double horizontal wire system creates extreme stability. In a set with our post system – this fence option is probably the safest one in the market. What is more, as we can offer any RAL color – this fence can be adapted to any exterior of a building and its surroundings.
- Length: 2508 mm
- Horizontal wires: 2×8 mm
- Vertical wires: 6 mm
- Mesh size: 200×50 mm (other mesh sizes available 200×100 mm, 200×25 mm)

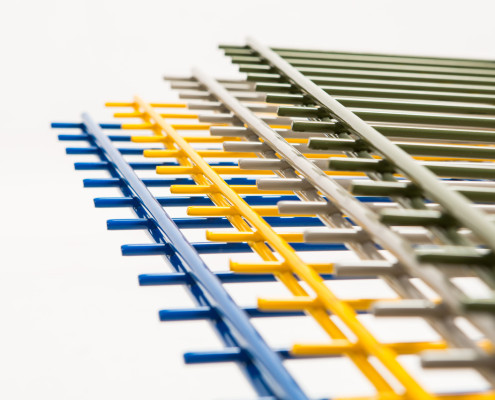

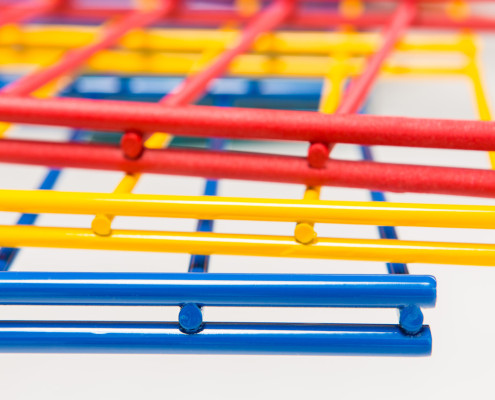

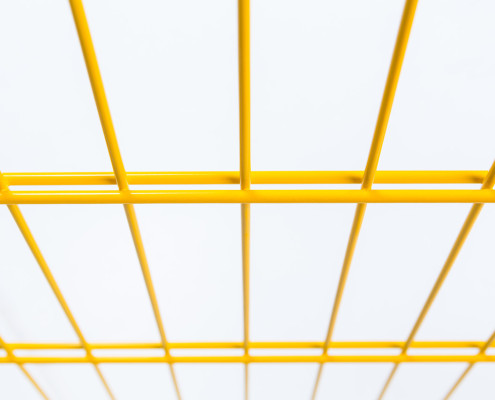

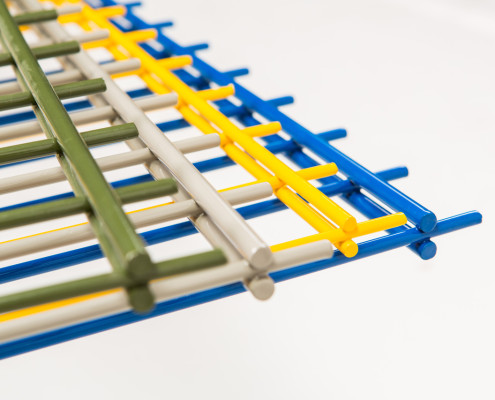

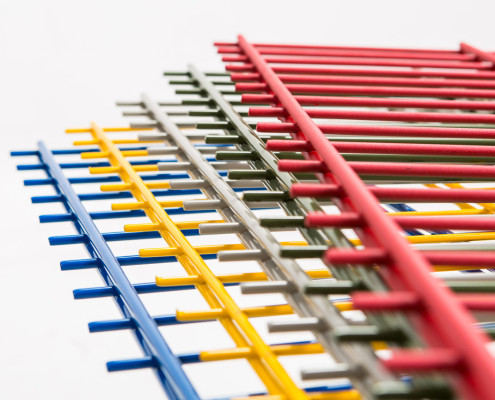

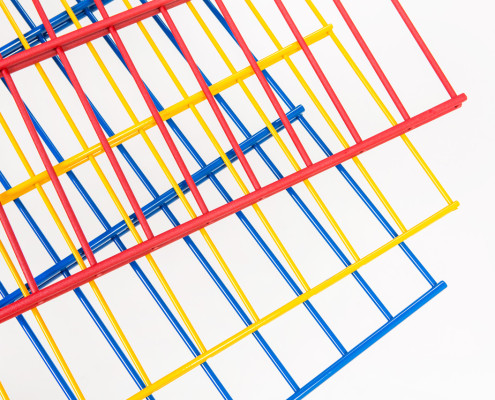

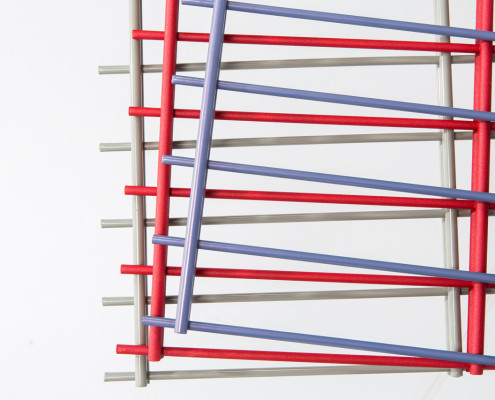

Surface options: hot dip galvanized according to EN ISO 1461, hot dip galvanized according to EN ISO 1461+ powder coated according to EN 13438 in any RAL color. Powder coated in polyester. We use only Qualicoat powder.
- Min 50 µm of zinc
- Min 70 µm of powder layer
- Before powder layer – the panels are preteated with a conversion layer for better adhesion for powder with zinc.
- Welding points conform to EN 10223-7
- Tensile strength: 500-700 N/mm2
6/5/6
| Height, mm | Weight (galvanised), kg | Weight (coated), kg |
| 630 | 8.7 | 8.9 |
| 830 | 11.1 | 11.4 |
| 1030 | 13.6 | 14 |
| 1230 | 16.1 | 16.5 |
| 1430 | 18.5 | 19 |
| 1630 | 21 | 21.6 |
| 1830 | 23.4 | 24.1 |
| 2030 | 25.9 | 26.6 |
| 2230 | 28.4 | 29.2 |
| 2430 | 30.8 | 31.7 |
6/5/6 offers a more economic but still extremely safe solution. In a set with our post system – this fence option is probably the safest economic option in the market. What is more, as we can offer any RAL color – this fence can be adapted to any exterior of a building and its surroundings.
- Length: 2508 mm
- Horizontal wires: 2×6 mm
- Vertical wires: 5 mm
- Mesh size: 200×50 mm (other mesh size available 200×25 mm)
Surface options: hot dip galvanized according to EN ISO 1461, hot dip galvanized according to EN ISO 1461+ powder coated according to EN 13438 in any RAL color. Powder coated in polyester. We use only Qualicoat powder.
- Min 55 µm of zinc
- Min 70 µm of powder layer
- Before powder layer – the panels are preteated with a conversion layer for better adhesion for powder with zinc.
- Welding points conform to EN 10223-7
- Tensile strength: 500-700 N/mm2 6 mm wire; 600-800 N/mm2 5 mm wire
